Overview
Features
Insulated Economy

Premium-duty 20 gauge and heavy-duty 24 gauge steel insulated garage doors offer long-lasting dependability and quality to meet the rigors of daily use in most commercial and industrial applications.

25 gauge insulated steel garage doors are an alternative option for applications requiring economy and reliability in a lighter-gauge commercial garage door.


*Calculated section R-value in accordance with DASMA TDS-163.



525V 525S 2" thick, 25 gauge roll formed steel with 1-3/8" thick polystyrene insulation with polyethylene vinyl backcover (525V) or pre-painted 30 gauge steel backcover (525S)
524V 524S 2" thick, 24 gauge roll formed steel with 1-3/8" thick polystyrene insulation with polyethylene vinyl backcover (524V) or pre-painted 30 gauge steel backcover (524S)
520S 2" thick, 20 gauge roll formed steel with 1-3/8" thick polystyrene insulation with pre-painted 30 gauge steel backcover (520S)
664V 2-1/8" thick, 24 gauge raised panel woodgrain embossed panel with 1-3/8" polystyrene insulation with polyethylene vinyl backcover

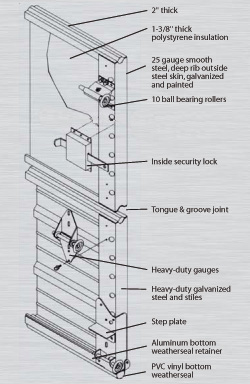

Features - 525V/525S
Panel Design: 2" thick roll formed smooth steel garage door features
Steel Gauge: 25 gauge (.019" min) ribbed steel sections
Joint Design: Tongue and groove
Thickness /Insulation

1-3/8" thick polystyrene insulation with polyethylene vinyl backcover (525V)

1-3/8" thick polystyrene insulation with pre-painted 30 gauge steel backcover (525S)

Thermal Conductivity R-Value 6.6*
Hardware 14 gauge hinges, commercial 10 ball steel rollers, 10,000 cycle torsion springs
Colors Pre-painted white or brown
Limited Warranty: 10-year paint / one-year material & workmanship

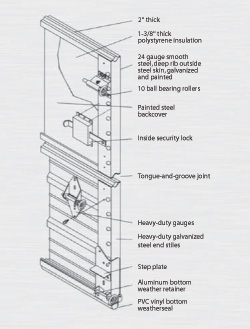

Features - 524V/524S
Panel Design: 2" thick roll formed stucco embossed steel garage door features diagram
Steel Gauge: 24 gauge (.022" min) ribbed steel sections
Joint Design: Tongue and groove
Thickness /Insulation

1-3/8" thick polystyrene insulation with polyethylene vinyl backcover (524V)

1-3/8" thick polystyrene insulation with pre-painted 30 gauge steel backcover (524S)

Thermal Conductivity R-Value 6.6*
Hardware 14 gauge hinges, commercial 10 ball steel rollers, 10,000 cycle torsion springs
Colors Pre-painted white, brown, tan or gray
Limited Warranty: 10-year paint /one-year material & workmanship

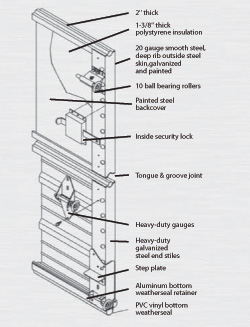

Features - 520S
Panel Design: 2" thick roll formed stucco embossed steel Features - 520S
Steel Gauge: 20 gauge (.034" min) ribbed steel sections
Joint Design: Tongue and groove
Thickness /Insulation 1-3/8" thick polystyrene insulation with pre-painted 30 gauge steel backcover
Thermal Conductivity R-Value 6.6*
Hardware 14 gauge hinges, commercial 10 ball steel rollers, 10,000 cycle torsion springs
Colors Pre-painted white or brown
Limited Warranty: 10-year paint / one-year material & workmanship


Features - 664V
Panel Design: 1-7/8" thick woodgrain embossed raised panel steel Features - 652V
Steel Gauge: 24 gauge (.022" min) ribbed steel sections
Joint Design: Tongue-and-groove
Thickness /Insulation 1-3/8" thick polystyrene insulation with polyethylene vinyl backcover
Thermal Conductivity R-Value 6.3*
Hardware 14 gauge hinges, commercial 10 ball steel rollers, 10,000 cycle torsion springs
Colors Pre-painted white, brown, yan or gray; Trinar white or beige
Limited Warranty: 10-year paint / one-year material & workmanship

*Calculated garage door section R-value is in accordance with DASMA TDS-163.
