Overview
Features
Polyurethane Doors

Climate control, reliability, durability-- our premier, thermally broken, polyurethane insulated steel garage doors have it all, providing excellent temperature control, energy efficiency and long-lasting service for a wide range of applications, such as firehouses, warehouses, and municipal buildings.




Model Thickness Emboss Exterior Steel Pattern R-Value*
3730 3" Stucco 27 Gauge Ribbed
22.2
3722 2" Stucco 20 Gauge Flush
18.4
3724 2" Stucco 24 Gauge Ribbed
18.4
3720 2" Stucco 27 Gauge Ribbed
18.4
3717

1 3/4"

Stucco 27 Gauge Ribbed
16.2
3718 1 3/4" Stucco 27 Gauge Flush
16.2
3715 1 3/8" Stucco 27 Gauge Ribbed
12.9

*Calculated section R-value in accordance with DASMA TDS-163.
Features: Polyurethane Doors

Features - 3715
Panel Design: 1 3/8" thick roll formed stucco embossed steel 3715 Panel Design
Steel Gauge: 27 gauge (.016" min) exterior; 28 gauge (.015" min) interior
Joint Design: Tongue & groove section with continuous foam thermal break
Thermal Conductivity: R-value 12.9*
Hardware: 14 gauge hinges, commercial 10 ball steel rollers, 10,000 cycle torsion springs
Colors: Pre-painted snow mist white or commercial brown, tan and gray
Limited Warranty: 10-year paint / 10-year delamination / one-year material & workmanship



Features - 3717 and 3718
Panel Design:

(3717) 1 3/4" thick stucco embossed steel exterior with minor ribbed pattern

(3718) 1 3/4" thick stucco embossed flush steel exterior

3717 and 3718 Diagram
Steel Gauge: 27 gauge (.016" min) exterior; 28 gauge (.015" min) interior
Joint Design: Tongue & groove section with continuous foam thermal break
Thermal Conductivity: R-value 16.2*
Hardware: 14 gauge hinges, commercial 10 ball steel rollers, 10,000 cycle torsion springs
Colors: Pre-painted snow mist white, commercial brown, tan or gray. Optional Trinar white.
Limited Warranty: 10-year paint / 10-year delamination / one-year material & workmanship



Features - 3720, 3724 and 3722
Panel Design:

(3720 & 3724) 2" thick stucco embossed steel exterior with minor ribbed pattern

(3722) 2" thick stucco embossed flush steel exterior

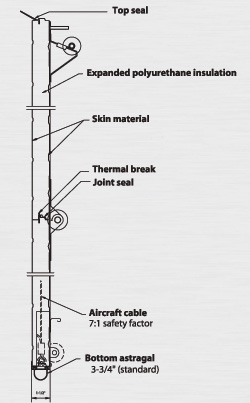

3720 and 3722 Diagram
Steel Gauge: (3720) 27 gauge (.016" min) exterior; 28 gauge (.015" min) interior
(3724) 24 gauge (.022" min) exterior; 28 gauge (.015" min) interior
(3722) 20 gauge (.034" min) exterior; 28 gauge (.015" min) interior
Joint Design: Tongue & groove section with continuous foam thermal break
Thermal Conductivity: R-value 18.4*
Hardware: 14 gauge hinges, commercial 10 ball steel rollers, 10,000 cycle torsion springs
Colors: (3720 & 3722) Pre-painted snow mist white, commercial brown
(3724) Pre-painted snow mist white, brown, commercial tan, gray and Trinar white
Limited Warranty: 10-year paint / 10-year delamination / one-year material & workmanship


Features - 3730
Panel Design:

3" thick stucco embossed ribbed steel exterior

3720 and 3722 Diagram
Steel Gauge: 27 gauge (.016" min) exterior; 28 gauge (.015" min) interior
Joint Design: Tongue & groove section with continuous foam thermal break
Thermal Conductivity: R-value 22.2*
Hardware: 14 gauge hinges, commercial 10 ball steel rollers, 10,000 cycle torsion springs
Colors: Pre-painted snow mist white, commercial brown
Limited Warranty: 10-year paint / 10-year delamination / one-year material & workmanship

*Calculated door section R-value is in accordance with DASMA TDS-163.
